Aperture: 6~6.5mm / M8

Color: 黑色

数量

50 件存货

查看完整详细信息

This product is made from PA66 environmentally friendly nylon raw material, with a net weight of approximately 236g per pack. It is shipped starting from 1 pack.

  • Product Overview

    The F02 fir tree-shaped threaded wire harness fixing tie is suitable for use in scenarios where the optical hole is 6~6.5mm and the panel thickness is 0.5~7mm. It can also be fixed using M8 thread. This product is widely used for binding and fixing wire harnesses and pipe fittings inside automobiles, eliminating the noise caused by unfixed wire harnesses and pipe fittings during driving.

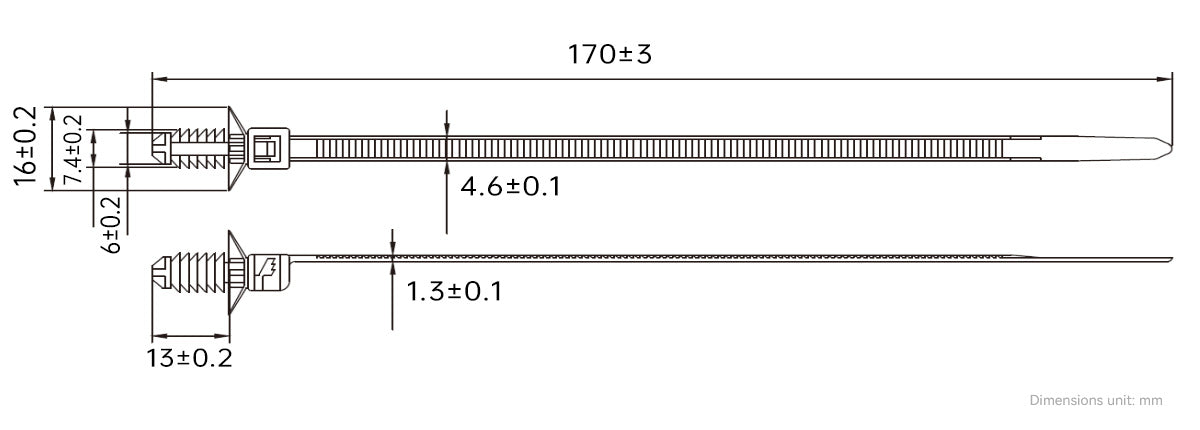

  • Dimensional Drawing

  • Specifications
    Model Size Mounting Hole Diameter Applicable sheet metal thickness
    L W T Aperture Screw hole
    F02 170mm 4.6mm 1.3mm 6~6.5mm M8 0.5~7mm
您的购物车
产品 产品小计 数量 价格 产品小计
F02
F02
F02
常规价格
¥52.00
促销价
¥52.00/件
¥0.00
常规价格
¥52.00
促销价
¥52.00/件
¥0.00

  • Product Overview

    The F02 fir tree-shaped threaded wire harness fixing tie is suitable for use in scenarios where the optical hole is 6~6.5mm and the panel thickness is 0.5~7mm. It can also be fixed using M8 thread. This product is widely used for binding and fixing wire harnesses and pipe fittings inside automobiles, eliminating the noise caused by unfixed wire harnesses and pipe fittings during driving.

  • Dimensional Drawing

  • Specifications
    Model Size Mounting Hole Diameter Applicable sheet metal thickness
    L W T Aperture Screw hole
    F02 170mm 4.6mm 1.3mm 6~6.5mm M8 0.5~7mm
请在设置中上传图片
请在设置中上传视频
请在设置中添加HTML表格代码
请在设置中添加富文本内容
请在设置中上传视频
请在设置中添加HTML表格代码

View user reviews for this product.

请在设置中上传图片
请在设置中上传视频
请在设置中添加HTML表格代码
Your Rating:
0/5

FAQ's

The Differences Between PA66 and PA6 Nylon Cable Ties?

Melting Point and Elasticity: The melting point of PA6 is 220°C, while that of PA66 is 260°C.
Product Characteristics: PA6 offers good toughness, is cost-effective, and has a low melting point; PA66 offers good strength, wear resistance, and a high melting point.

Operating Temperature Range of the Cable Ties?

Nylon cable ties must be stored in a temperature-controlled environment away from direct light, and the warehouse air should maintain an appropriate relative humidity. It is crucial to avoid storing them in single-layer sheet metal structures; this is because such structures tend to reach relatively high temperatures—particularly when exposed to direct sunlight during the summer. Given that nylon possesses the inherent ability to both absorb and release moisture, using or storing the material under such high-temperature conditions causes the moisture within the nylon to evaporate rapidly. Once this proper moisture content is lost, the material's properties will undergo alteration, resulting in a reduction in its tensile strength.

Why are nylon cable ties prone to breaking?

Nylon 66 itself has relatively poor low-temperature resistance, and it is normal for it to fracture in colder winter weather. To address this issue, one can add some raw materials that are both low-temperature resistant and have good compatibility with nylon 66. Alternatively, one can replace it with a long carbon chain nylon that has better low-temperature resistance.

The normal service life of nylon cable ties?

The typical service life of nylon cable ties is approximately 10 years; however, depending on the specific circumstances, their actual lifespan generally ranges from 2 to 5 years. Furthermore, the longevity of nylon cable ties varies based on usage conditions, as well as differences in their specific model, specifications, materials, and design.
